Wireline Metric Drill Rod High Tensile Strength Geological Drill Pipe DCDMA

Name: Wireline Metric Drill Rod High Tensile Strength Geological Drill Pipe DCDMA
Brand: KonDaSin
Price: 1 USD

Quality Wireline Metric Drill Rod High Tensile Strength Geological Drill Pipe DCDMA for sale

Brand Name : KonDaSin

Model Number : Wireline drilling rods

Place of Origin : China

MOQ : 1piece

Payment Terms : T/T, L/C, Western Union

Supply Ability : 100000 Piece/Pieces per Month

Delivery Time : 8 working days

Packaging Details : Standard export package or according to client's requirement

Certification : ISO9001

Name : Geological Drill Pipe

Material : Carbide, Carbon Steel

Use : Coal Mining, Well Drilling

Standard : DCDMA

Color : Black or as per your demands

Size : BQ NQ HQ PQ

Contact Now

Wireline Drill Rods Geological Drill Pipe High Straightnes High Tensile Steel Core Drilling

1. Core drill rods are used in coring drilling project, geological drilling, ore drilling etc,they are primarlly used in deep drilling.
2. We choose high grade steel material thru heat treatment of the steel tube & thread joint to improve the steel material streagth and insurance the thread wear life.

3. Drill rods are available in DCDMA sizes AW, BW, NW and HW with tapered threaded tool joints in sizes AWY, BWY and NWY.
4. Drill rods are also available in Wireline sizes A, B, N, H, P and Metric sizes 42mm, 50mm, 60mm, 70mm and 90mm.

Size	Outer Diameter (mm)	Inner Diameter(mm)
AQ	44.7	37.3
BQ	55.7	46.1
NQ	70.0	60.2
HQ	89.0	78.0
PQ(PHD)	114.5	101.5
AW/AWJ/AWY	43.7	30.7
BW/BWJ/BWY	54.0	38.0
NW/NWY	66.8	51.0
HW	89.0	71.0
42mm	42.0	30.0
50mm	50.0	37.0
60mm	60.0	48.0
70mm	73.0	54.6
90mm	89.0	69.0
S75	71.0	61.0

1. High precision in size and shape

2. Good low temperature toughness

3. Excellent comprehensive mechanical properties

4. High connection strength and sealability

5. Large inside diameter of tool joint

6. High torque resistance

7. High fatigue strength and long fatigue life

Wireline Metric Drill Rod High Tensile Strength Geological Drill Pipe DCDMA

Product Tags:

drill steel rod

drill extension rod

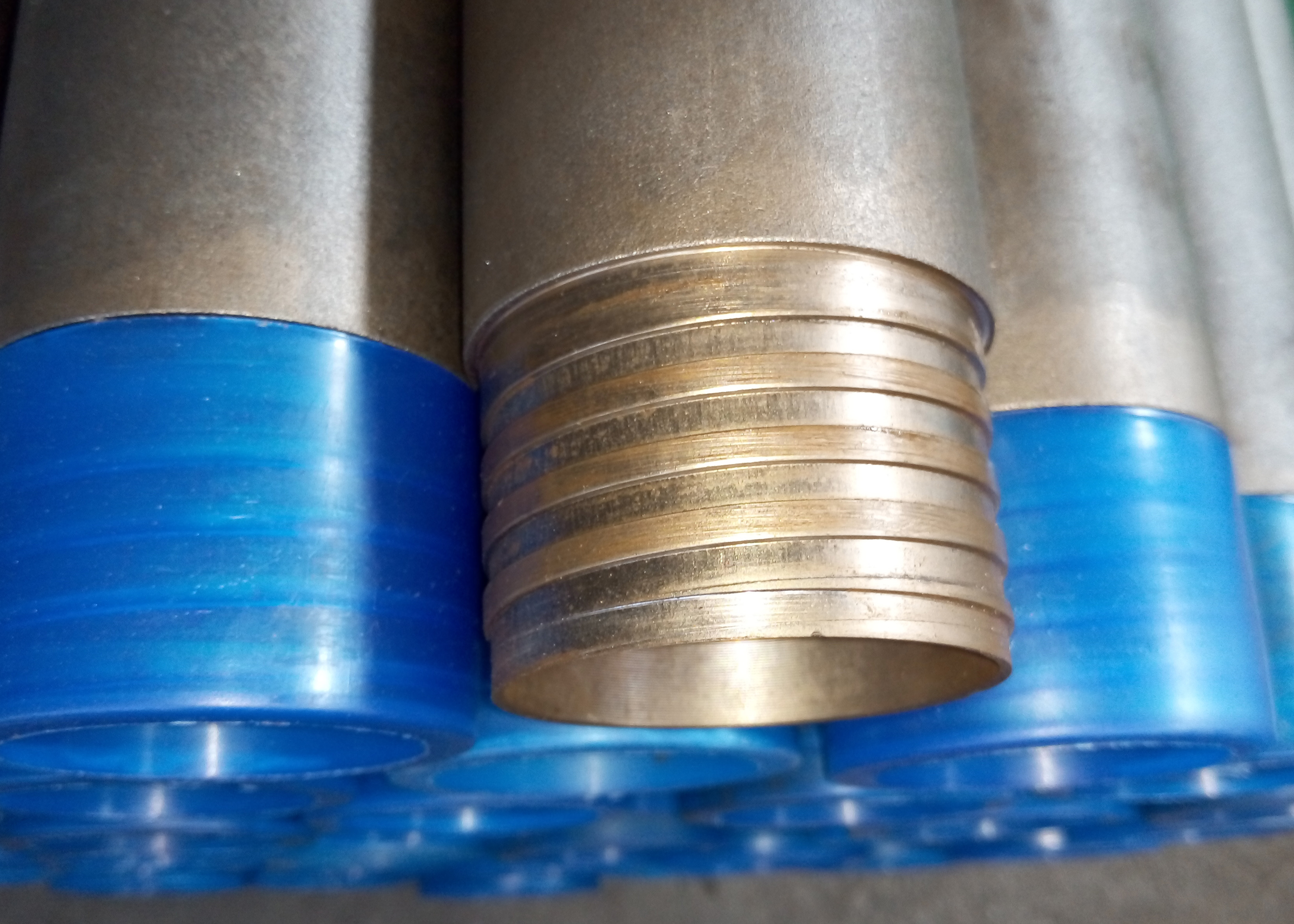

Wireline Metric Drill Rod High Tensile Strength Geological Drill Pipe DCDMA Images
